Engineering Graphics: Unit II (a): Orthographic Projection
Vertical plane, Horizontal Plane and Profile Plane
Engineering Graphics (EG)
Clearly the Profile plane is adjacent to the Vertical plane and Horizontal plane is below the vertical plane.

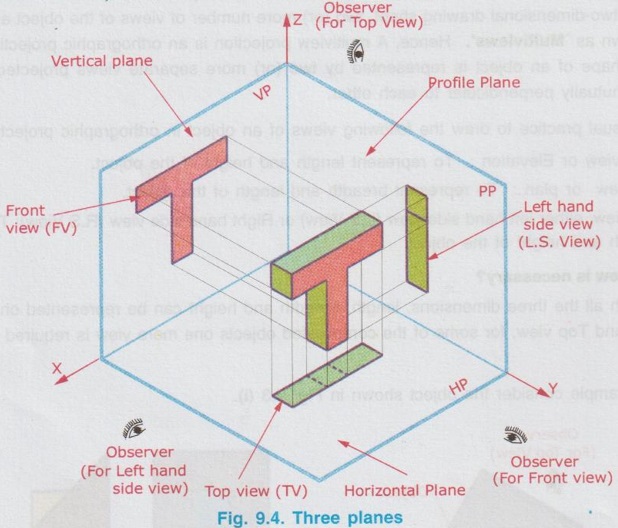

VERTICAL PLANE, HORIZONTAL PLANE AND PROFILE PLANE Fig. 9.4. shows the formation of three planes, XY, XZ and ZY, known as Horizontal plane (HP), Vertical plane (VP) and Profile plane (PP) respectively. Along X axis → Length of the object is measured Along Y axis → Breadth of the object is measured Along Z axis → Height of the object is measured on XZ plane (Vertical plane) → Length and Height of the object can be shown. on YZ plane (Profile plane) → Breadth and Height of the object can be shown. on XY plane (Horizontal plane) → Length and Breadth of the object can be shown. Clearly the Profile plane is adjacent to the Vertical plane and Horizontal plane is below the vertical plane. Arrangement of views are explained below.
Engineering Graphics: Unit II (a): Orthographic Projection : Tag: : Engineering Graphics (EG) - Vertical plane, Horizontal Plane and Profile Plane
