PROBLEMS FOR PRACTICE: Programming of CNC Machine Tools - Manufacturing Technology

PROBLEMS FOR PRACTICE

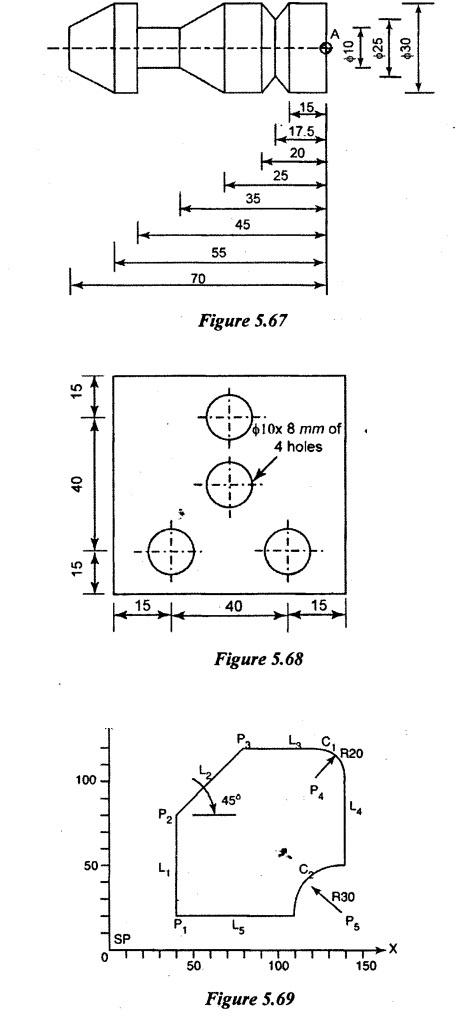

1. Prepare a part program for the given component shown in Figure 5.67.

2. Prepare a part program to drill the given component shown in Figure 5.68.

3. Prepare a part program to mill the given component shown in Figure 5.69.
