The switching position of a directional control valve can be changed by various actuation methods.

METHODS OF OPERATION / ACTUATION

• The switching position of a directional control valve can be changed by various actuation methods. The symbol for the valves is elaborated by the addition of the symbol indicating the actuation method.

• Table 7.7 presents the various standard symbols used for methods of operation.

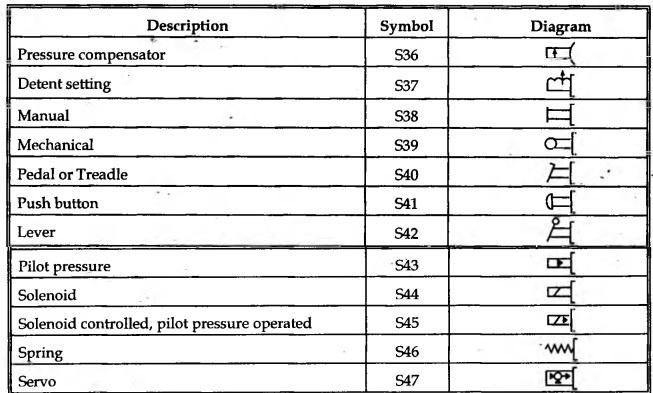

Table 7.7. Graphic symbols used for methods of operation
