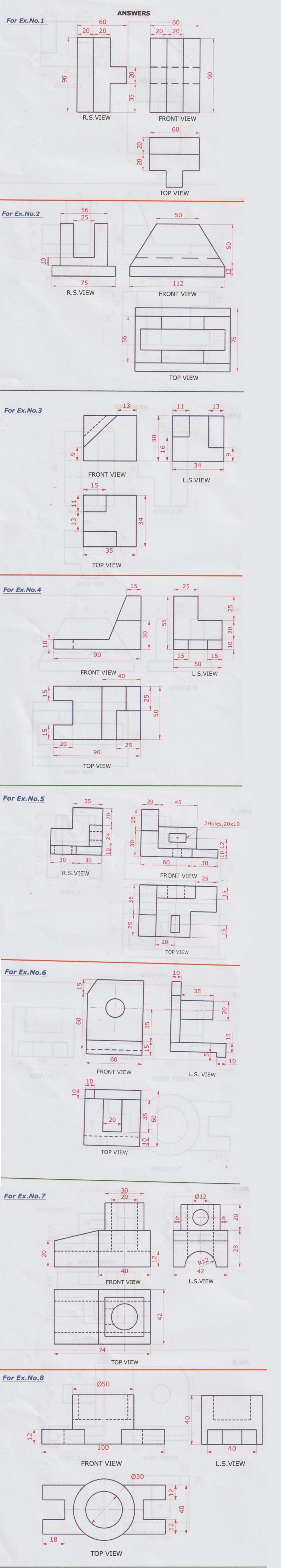

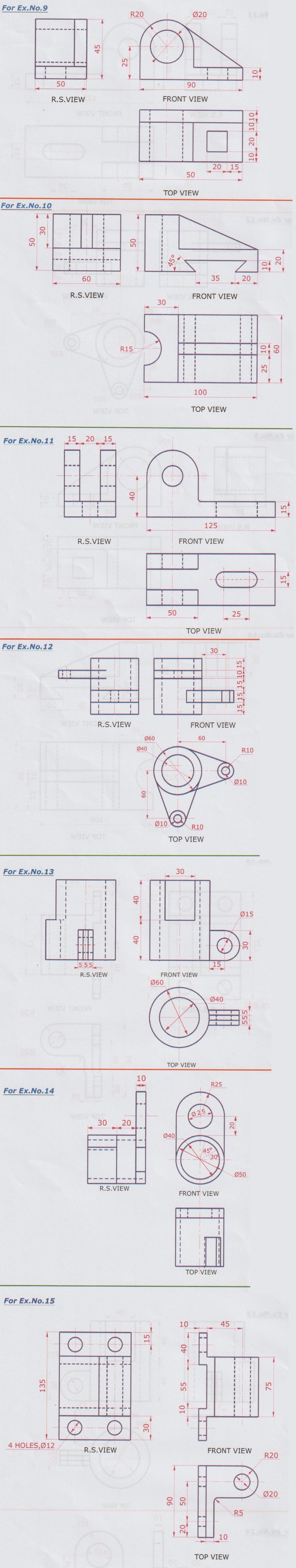

Draw the Orthographic projections in First angle projection for the objects shown below

EXERCISE

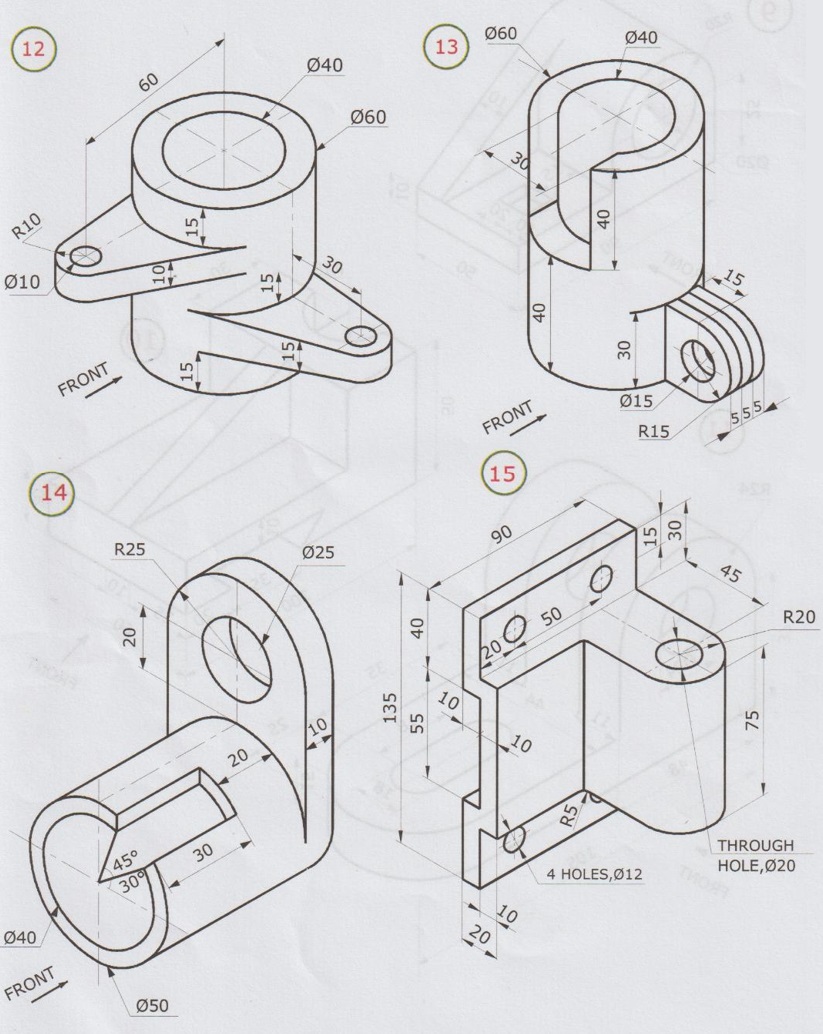

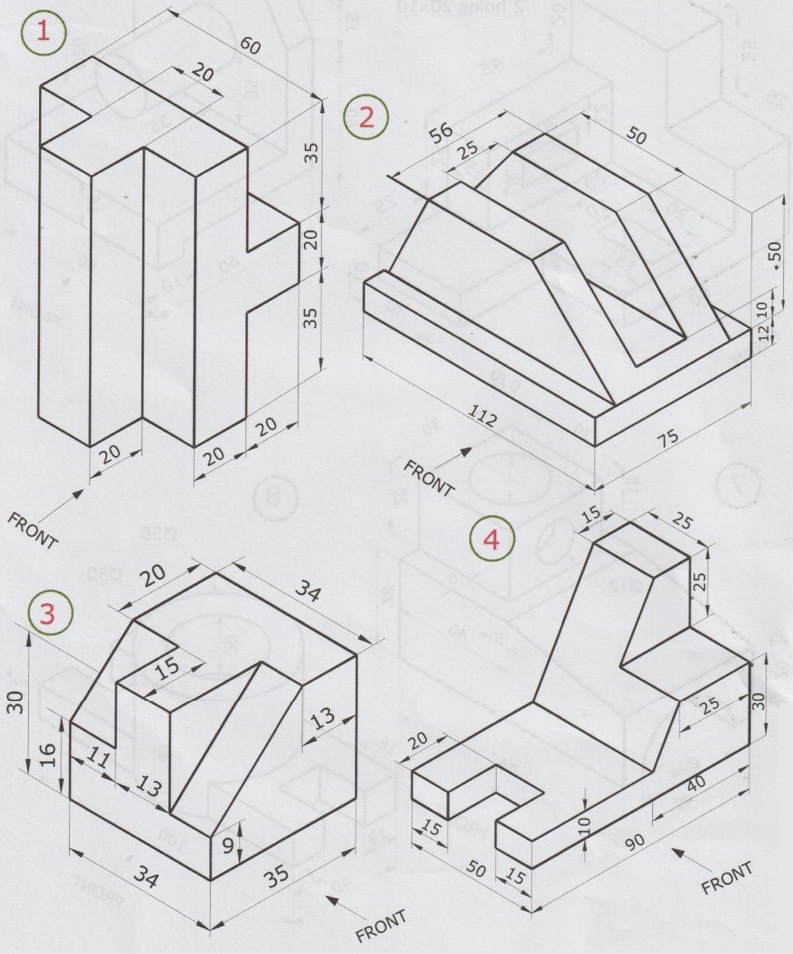

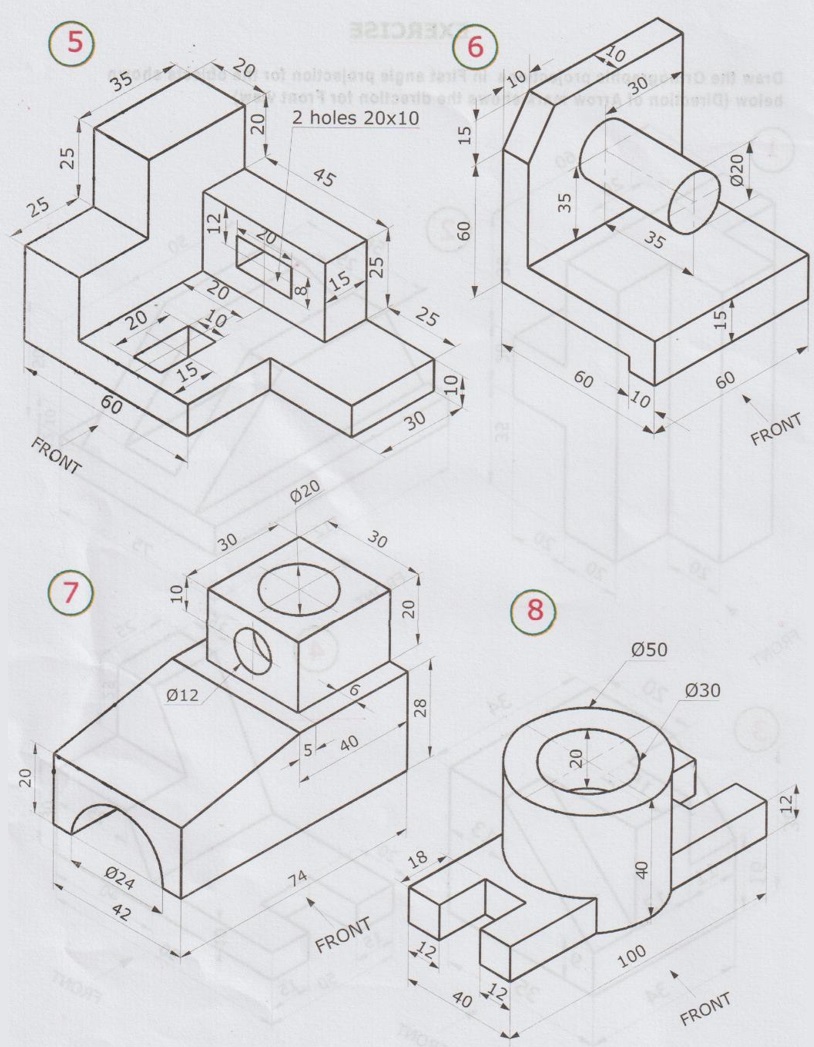

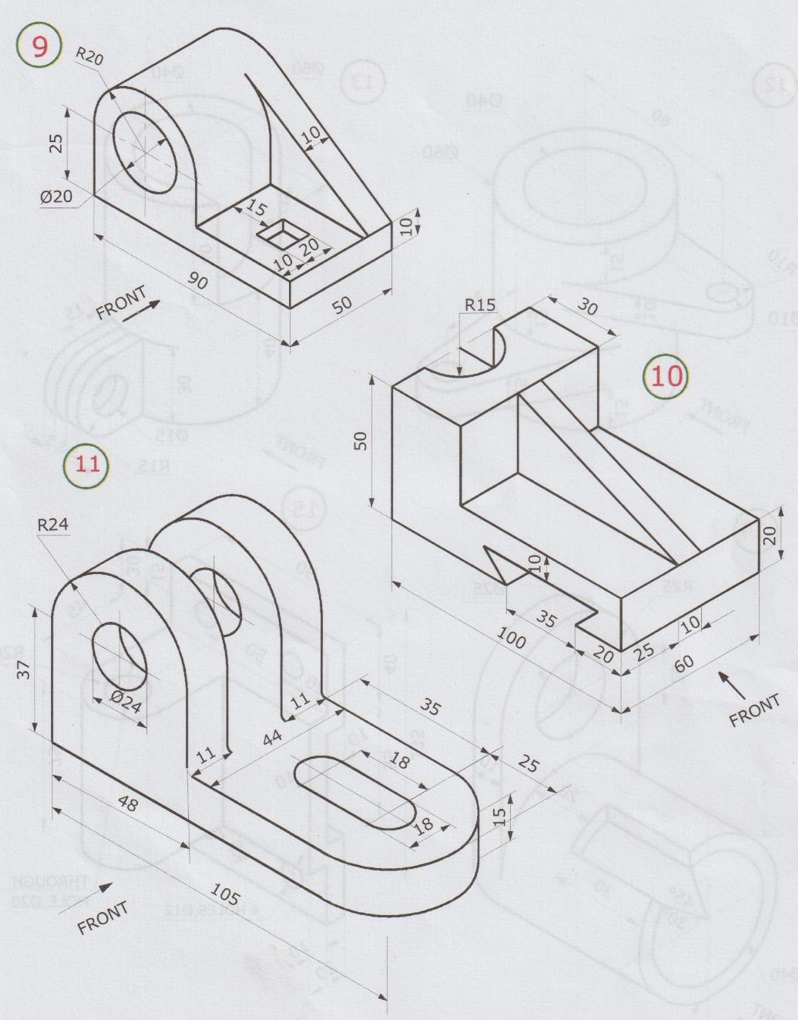

Draw the Orthographic projections in First angle projection for the objects shown below (Direction of Arrow mark shows the direction for Front view)
