Characteristics of DC Motor

CHARACTERISTICS OF DC MOTOR

The characteristic of dc motor shows the relationship between the following quantities.

i) Torque and armature current (T Vs Ia). It is also known as the electrical characteristic.

ii) Speed and armature current (N Vs Ia)

ü) Speed and the armature torque (N Vs Ta). It is also known as mechanical characteristics.

The above characteristics can be obtained for all types of motors with the help torque and speed equations.

1. Characteristics of DC Shunt Motor

i) Ta Vs Ia Characteristics

The magnetic flux ϕ, reduces slightly on heavy loads only. Hence, flux can be considered to remain constant.

Ta ∝ Ia

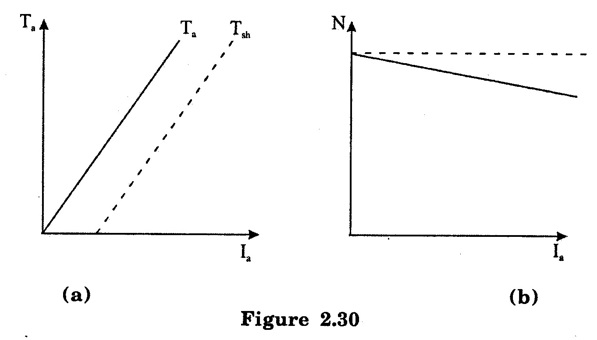

Therefore, Ta Vs Ia characteristics is a straight line characteristics as shown in figure 2.30 (a).

ii) N Vs Ia Characteristics

For shunt motor ϕ is almost constant on load. ⸫ N ∝ Eb

when load increases, Ia increases, but the drop IaRa is very small as Ra is very small. Hence there will be a small change in speed from no-load to full load as illustrated in figure 2.30 (b). The drop in speed from no-load to full-load is 5 to 10% of no-load speed. Shunt motor is a constant speed motor.

iii) N Vs Ta Characteristics

This can be deduced from the above two characteristics and is shown in figure 2.30(c.)

2. Characteristics of DC Series Motors

i) Ta Vs Ia Characteristics

Ta ∝ fIa

In series motor ϕ ∝ Ise and Ise = Ia

At lights loads, Ta ∝ Ia2 (prior to saturation of fields poles)

At heavy loads, Ta ∝ Ia (after saturation of magnetic poles, ϕ is constant for any value of Ia)

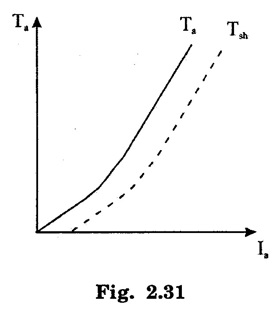

Hence, Ta vs Ia Characteristics is a parabola prior to saturation, and it is a straight line beyond saturation point, as shown in figure 2.31. On heavy loads, the series motor employs higher starting torque as Ta ∝ Ia2 prior to saturation.

ii) N vs Ia Characteristics :-

Variation in Eb is very small with variations in load. So it can be regarded as constant on all loading.

The speed - armature current characteristic is a rectangular parabola as shown in figure 2.32. On light load or on no-load; the armature current Ia is very small, and hence the motor will run at dangerously high speeds. Hence, series motor should always be started with some load on it. Series motor is a variable speed motor.

iii) N vs Ta Characteristics

From the above two characteristics, this characteristics can be deduced, as shown in figure 2.33

3. Characteristics of compound motors

Cumulative compound motor

The fluxes which are produced by the two field windings, aid each other. On light loads, the torque developed is similar to that in a shunt motor. On heavy loads, the total flux increases and torque increases rapidly as shown in figure 2.34(a)

Differential Compound motors

On no-load and light loads, the effect of series field flux is small. Hence, torque produced is as that in a shunt motor. On heavy loads the effect of series field is more and reduces the net flux. Hence the torque developed is reduces and may become zero. On further loading the series field dominates the main field, torque is developed in opposite direction and motor will run in the opposite direction. The characteristics are shown in figure 2.34(b).
