APPENDIX D: Mechanical Properties And Testing: Engineering Materials and Metallurgy

APPENDIX D

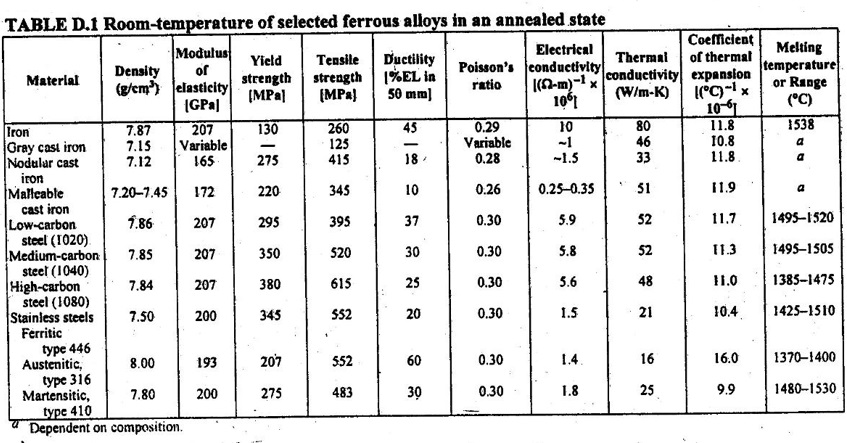

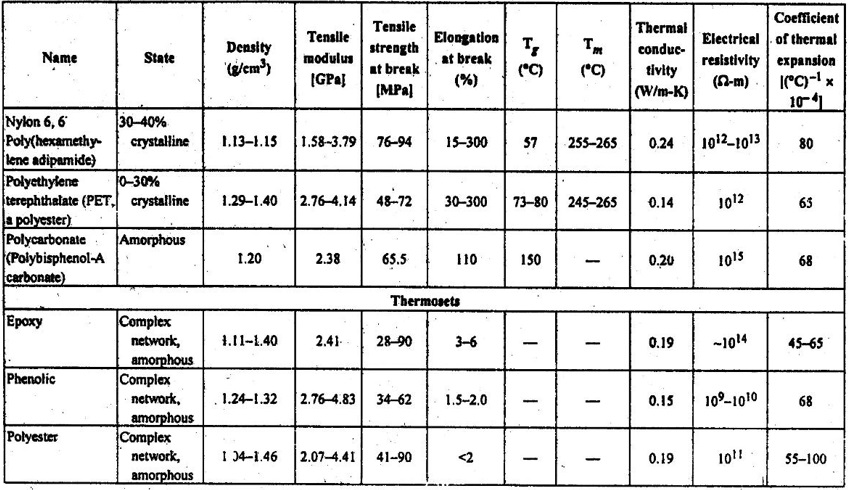

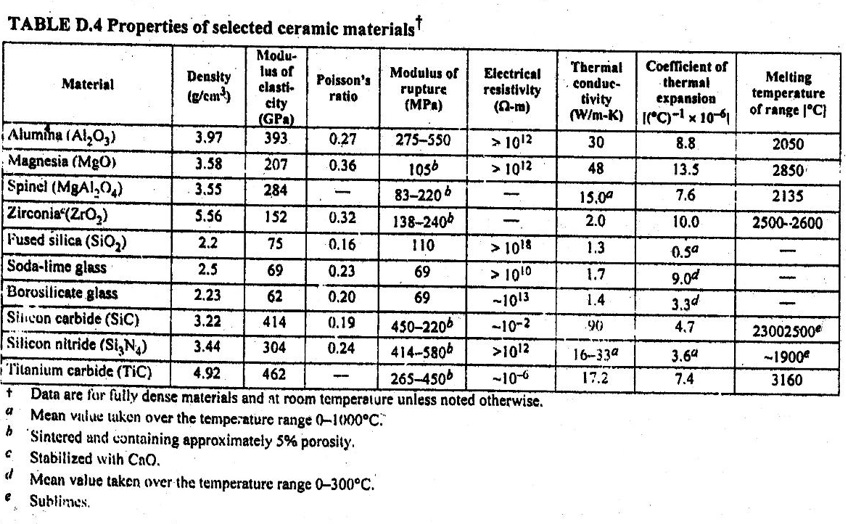

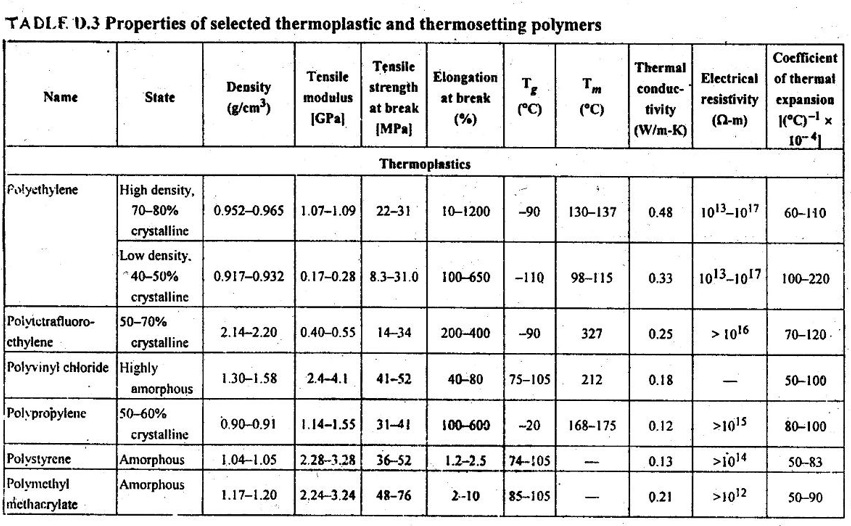

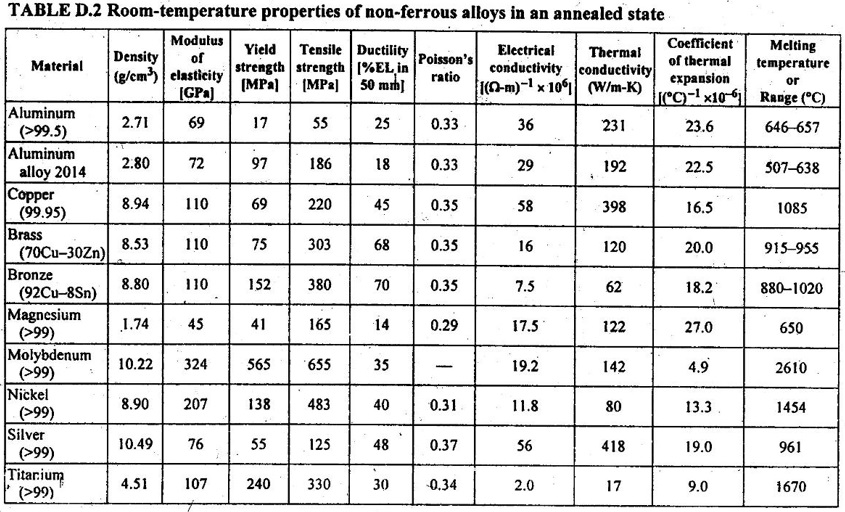

PROPERTIES OF SELECTED ENGINEERING MATERIALS






APPENDIX - D

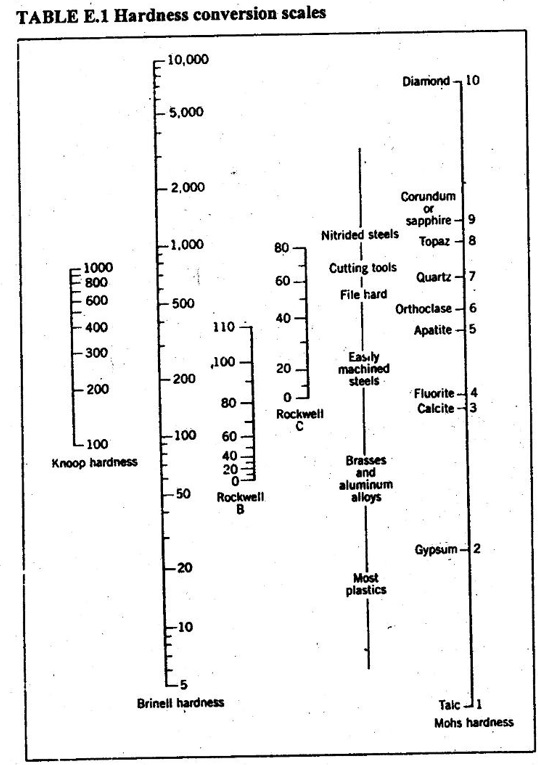

HARDNESS CONVERSION SCALES
