• It states that, "if two forces are represented in magnitude and direction by two adjacent sides of a parallelogram, their resultant is represented in magnitude and direction by the diagonal of the parallelogram drawn from the common point".

• While using parallelogram law, draw both the forces from the same point. Then complete the parallelogram by drawing lines parallel to the two forces. Draw the diagonal from the common point which represents the resultant in magnitude and direction. Then use

• Parallelogram law can be used for composition and resolution of forces along any two directions in the plane.

Solved Examples for Understanding

Example 2.6.1

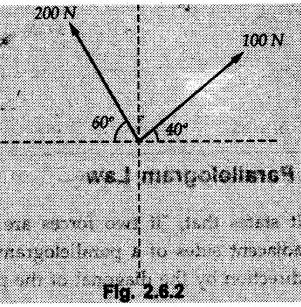

Find resultant of the two forces shown in Fig. 2.6.2 using parallelogram law.

Solution:

Let P= 100 N and Q = 200 N then a = 80°. Complete the parallelogram by drawing lines parallel to the given forces.

The diagonal drawn from the common point represents their resultant which makes angle θ with P.

Refer Fig. 2.6.2 (a).

Example 2.6.2

Find components F and Ep of the 100 N force along the directions shown in Fig. 2.6.3 using parallelogram law.

Solution:

Let P = Fa and Q = Fb

Then their resultant is R = 100 N.

α = Angle between P and Q = 130°

θ = Angle between R and P = 30°

Using equation (2), Fa can be expressed in terms of Fb which can then be substituted in equation (1).

Fa tan 30 + Fb cos 130 tan 30 = F sin 130

Note: The solution to this example is more lengthy using parallelogram compared to the other two methods as one of the equations in parallelogram law is quadratic in P and Q and the other is linear.

In triangle law as well as rectangular components, both the equations are linear.

Example 2.6.3

If the resultant of the two forces shown in Fig. 2.6.4 is 700 N directed vertically upwards, find the angles a and ß using parallelogram law.

Solution:

Let P = 500 N, Q = 400 N, R = 700 N.

Then angle between P and Q = α' = α + β

and angle between R and P is θ = α

Note:

The parallelogram law and the triangle law give solution in less number of steps compared to resolution in rectangular components when two angles are unknown.

The above two problems can also be solved using Lami's theorem as illustrated in the next section.
