Engineering Graphics: Unit I (c): Conic Sections
Engineering Applications of Conic Sections
Ellipse, Parabola, Hyperbola | Engineering Graphics (EG)
Some of the engineering applications of conic sections widely used in practice are given below.

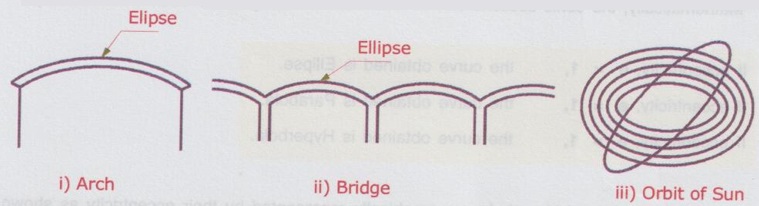

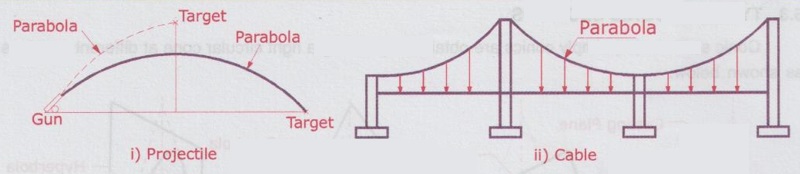

ENGINEERING APPLICATIONS OF CONIC SECTIONS Some of the engineering applications of conic sections widely used in practice are given below. i) Elliptical arches in Civil Engineering Construction ii) Stone Bridges iii) A planet travels around the sun in an elliptical orbit with the sun at one of its foci. i) Path traversed by a projectile ii) Shape of cables in suspension bridges. Cooling towers and chimneys are in Hyperbolid surface, a surface obtained by revolving a hyperbola around its axis. Used in many monumental buildings for their architectural beauty.1. Ellipse
2. Parabola
3. Hyperbola
