Due to internal pressure, the cylindrical shells are subjected to lateral and linear strain.

CHANGE IN DIMENSIONS OF A THIN CYLINDER DUE TO INTERNAL PRESSURE

Due to internal pressure, the cylindrical shells are subjected to lateral and linear strain. Thus the change in dimensions such as length, diameter may increase. Now consider a thin cylindrical shell of same dimensions as in previous case for the following analysis.

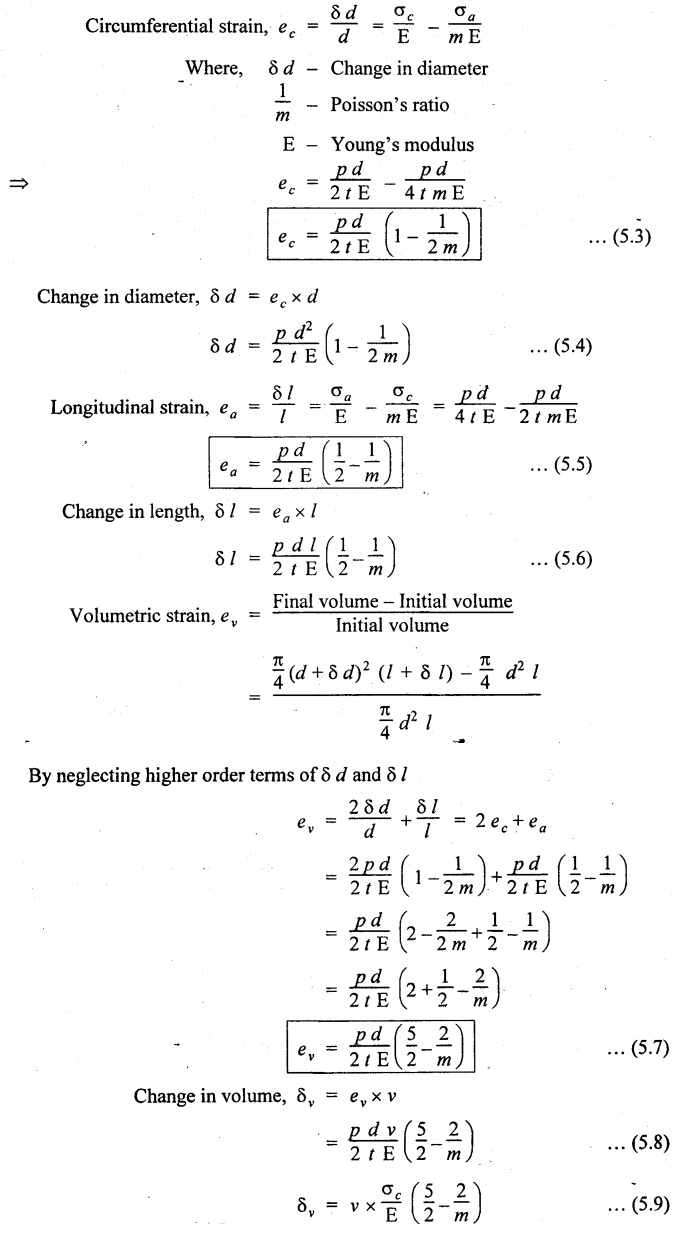

We know that,
