Solved Example & Practice Problems: Equilibrium of Three Forces in a Plane

Solved Examples for Understanding

Example 4.4.1

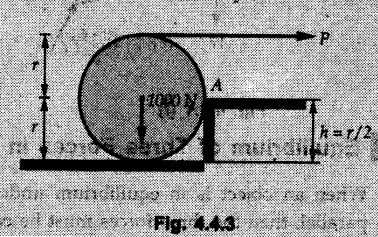

A roller of radius r and weight W = 1000 N is to be pulled over a curb of height h = r/2 as shown in Fig. 4.4.3 by applying a horizontal force P at the end of a string wound around. the circumference of the roller. Find the magnitude of force P required to start the roller over the curb.

Solution:

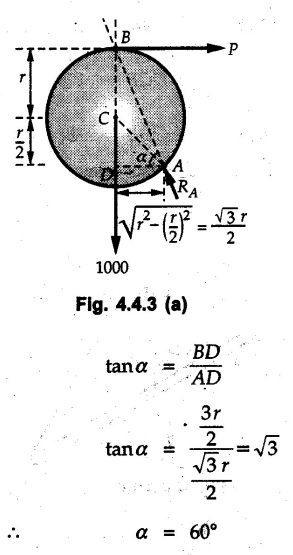

The F.B.D. of roller is shown in Fig. 4.4.3 (a). To pull the roller over the curb, the reaction at the bottom surface tends to zero.

As there are three forces acting on the roller, the direction of reaction at A must pass through the point of intersection of the lines of action of P and 1000 N. As RA has line of action from A to B, its angle α with horizontal will be given by

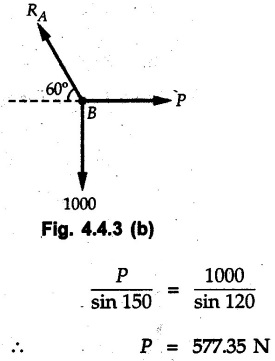

As the forces are concurrent at B as shown in Fig. 4.4.3 (b). Using Lami's theorem,

Example 4.4.2

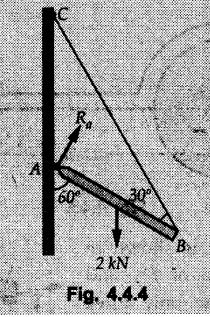

A prismatic bar AB of weight 2 kN is hinged to a vertical wall at 'A' and supported at B by a cable BC. Determine the magnitude and direction of the reaction Ra at the hinge A and the tensile force in the cable 'BC'. Refer Fig. 4.4.4.

Solution:

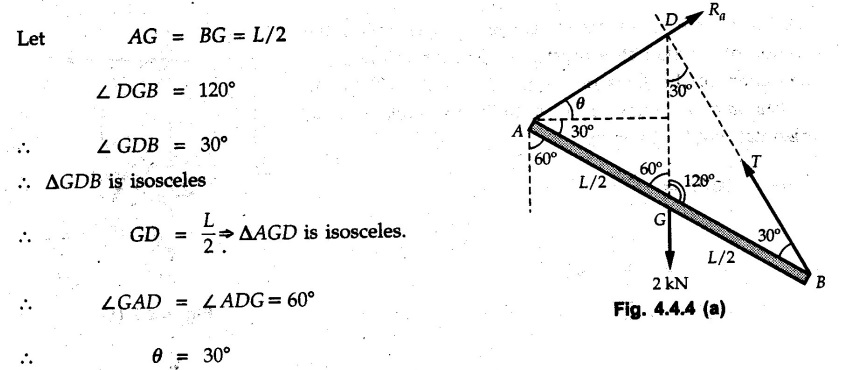

As the bar AB is subjected to three forces the line of action of Ra must pass through the point of intersection of 2 kN and T as shown in Fig. 4.4.4 (a).

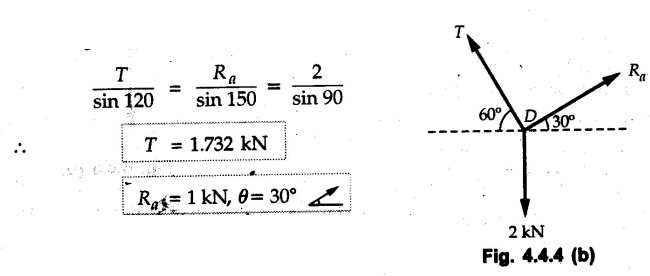

The F.B.D. of point D is shown in Fig. 4.4.4 (b).

Using Lami's theorem,

Example 4.4.3

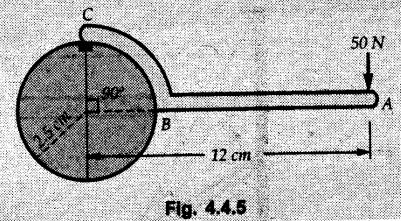

Determine the forces exerted on the cylinder at B and C by the spanner shown in Fig. 4.4.5 due to a vertical force of 50 N applied to the handle,

Solution:

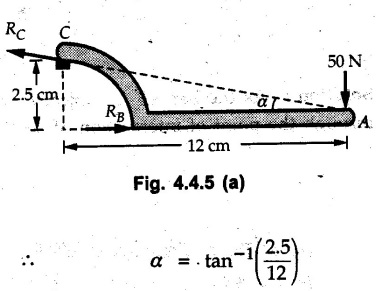

The F.B.D. of spanner is shown in Fig. 4.4.5 (a). The line of action of Rg and 50 N intersect at A. As there are only three forces acting on the spanner, the line of action of RC must pass through pass through point A for equilibrium of spanner as shown in Fig. 4.4.5 (a)

⸫ α = 11.77°

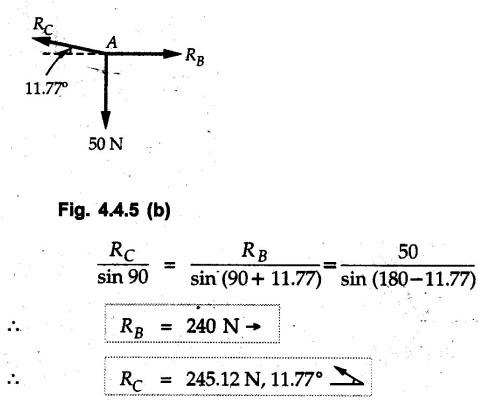

The F.B.D. of point A is shown in Fig. 4.4.5 (b). Using Lami's theorem,

Example 4.4.4

A 1.2m long rod of uniform cross-section, is held in equilibrium as shown in Fig. 4.4.6 with one end against a frictionless wall and the other end attached to the cord. Determine the length of the cord.

Solution:

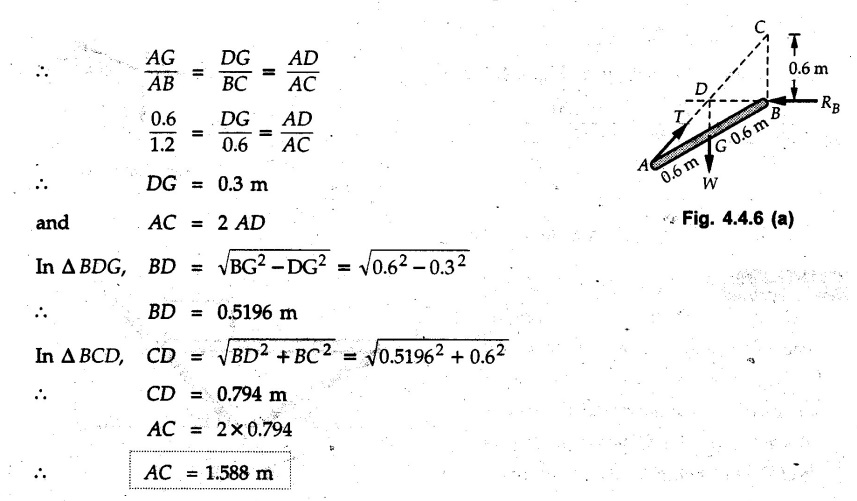

The F.B.D. of rod AB is shown in Fig. 4.4.6 (a). The rod subjected to three forces RB, W and T which must be concurrent at point D on the cord.

ΔADG and ΔACB are similar.

Example 4.4.5

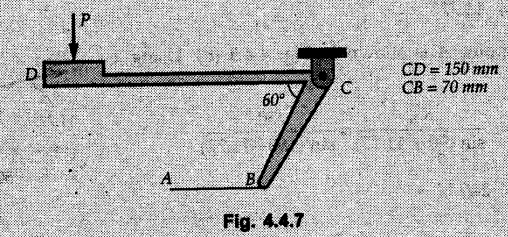

The required tension in cable AB is 200 N. Find a) The vertical force P which must be applied to the pedal, and b) The reaction at C. Refer Fig. 4.4.7.

Solution:

The F.B.D. of pedal is shown in Fig. 4.4.7 (a).

As there are three forces acting on the pedal, find the point of intersection of two forces and make the forces concurrent by choosing direction of third force. The lines of action of P and T intersect at E. Therefore line of action of RC must be from E to C.

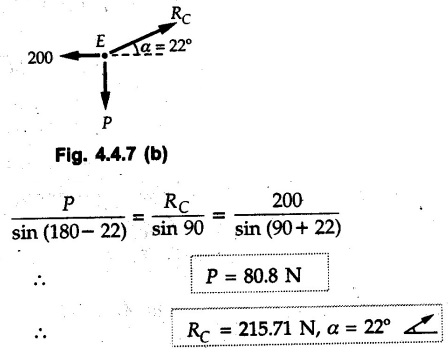

Using Lami's theorem at E (Fig. 4.4.7 (b)),

Example 4.4.6

A light beam AB of 600 mm length is resting against smooth inclined planes AC and CB making angles 30° and 45° respectively to X-axis. In the horizontal position as shown in Fig. 4.4.8, obtain position of load P i.e. distance 'x' for equilibrium.

Solution:

The F.B.D. of AB is shown in Fig. 4.4.8 (a). As there are three non-parallel forces acting on AB, they must be concurrent for equilibrium of AB. i.e, P must pass through point of intersection of the lines of action of RA and RB as shown in Fig. 4.4.8 (a).

Example 4.4.7

A uniform wheel of 50 cm diameter and 1 kN weight rests against a rigid rectangular block of thickness 20 cm. Considering all surfaces smooth, determine

i) Least pull to be applied through the centre of wheel to just turn it over the corner of block

ii) Reaction of block.

Solution :

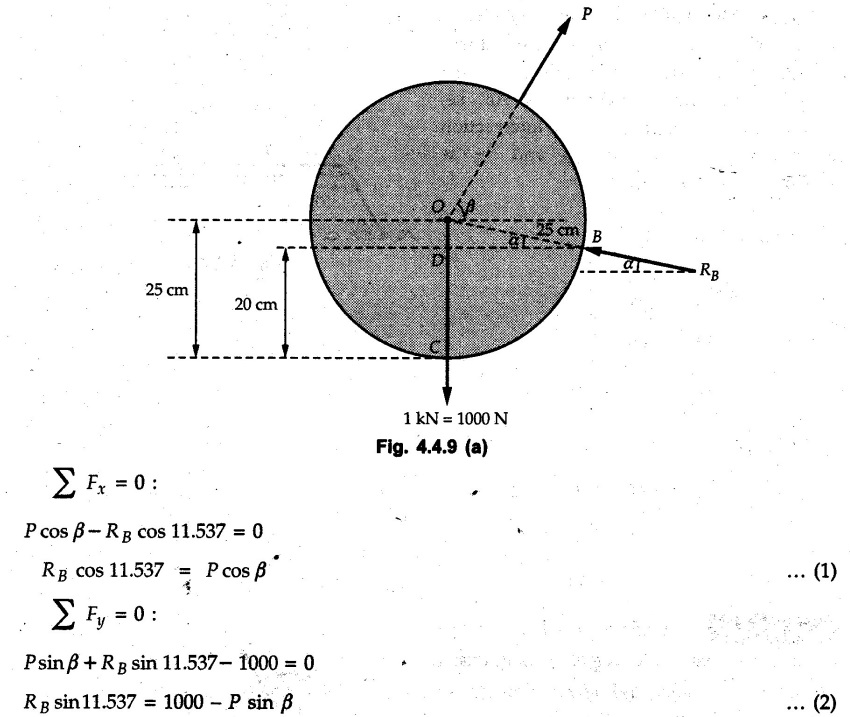

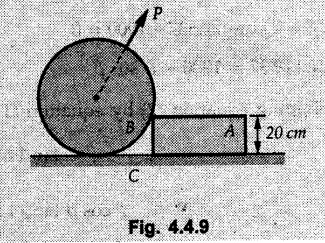

The F.B.D. of wheel is shown in Fig. 4.4.9 (a). For the limiting condition of equilibrium, the three forces must be concurrent. Hence the reaction at B must pass through the point of intersection of the weight and force P, i.e., through the centre O of the wheel.

From ΔODB;

⸫ α = 11.537 °

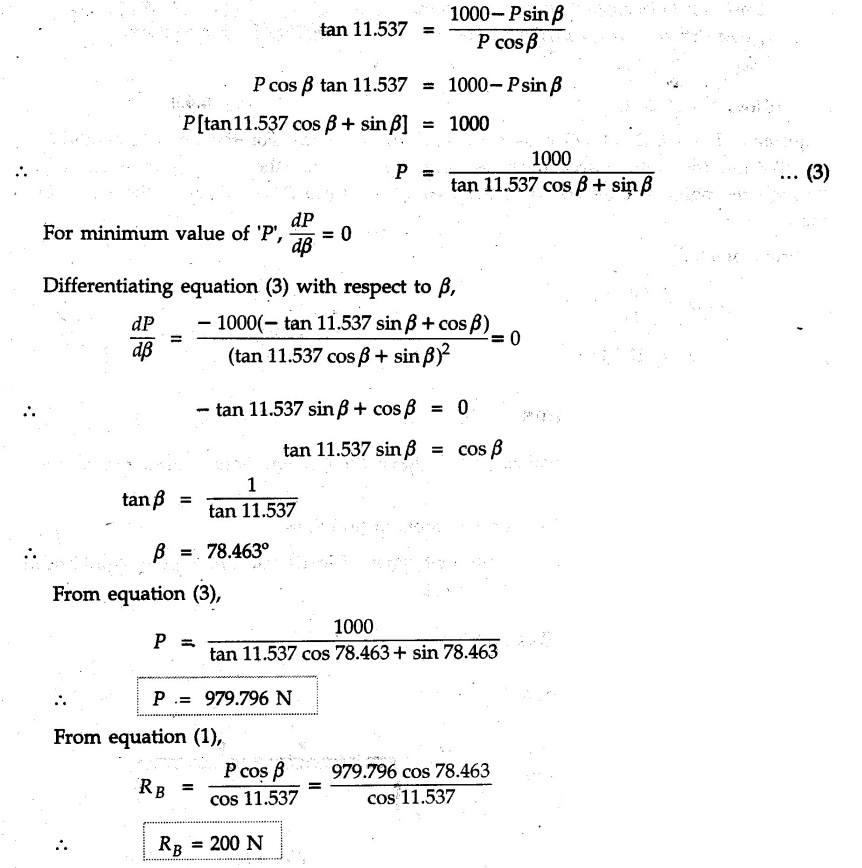

Dividing equation (2) by equation (1), we get

Examples For Practice

Q.1

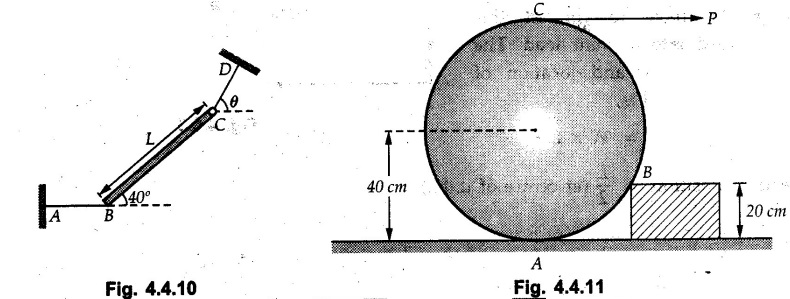

A slender rod BC of length L and weight W is held by two cables as shown in Fig 4.4.10. Knowing that cable AB is horizontal and that the rod forms an angle of 40° with the horizontal, determine the angle 0 that cable CD forms with the horizontal and the tension in each cable.

[Ans.: TB = 0.596 W, TCD = 1.164 W, θ = 59.21°]

Q.2

A roller of radius 40 cm, weighing 3000 N is to be pulled over rectangular block of height 20 cm as shown in Fig. 4.4.11. By a horizontal force applied at the end of a string wound around the circumference of the roller. Find the magnitude of the horizontal force which will just turn the roller over the corner of the reactangular block. Also determine the magnitude and direction of reaction at A and B. All surfaces may be taken as smooth.

[Ans. : RA = 0, RB = 3464.1 N, 60° P = 1732.05 N]
