We know that Laplace Transforms are very useful to solve linear differential equations

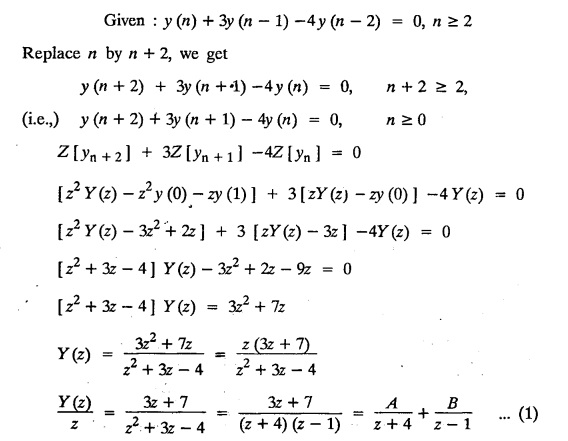

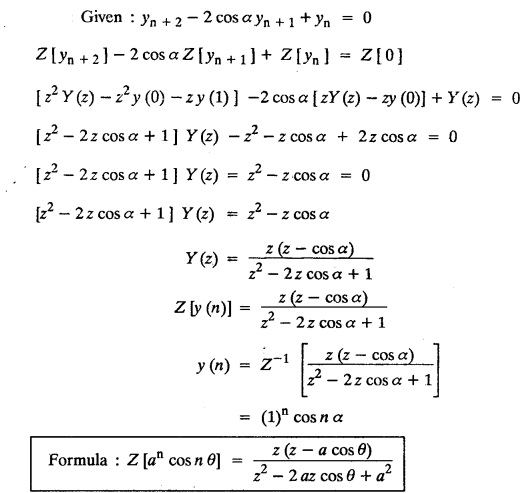

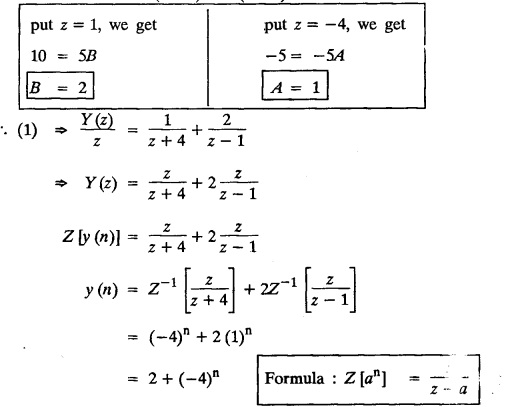

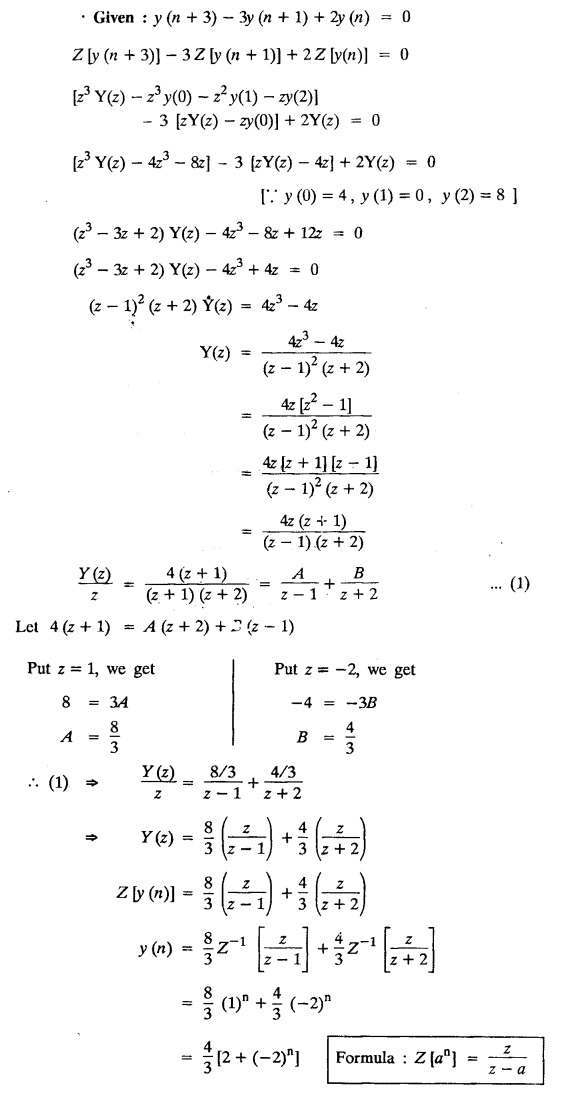

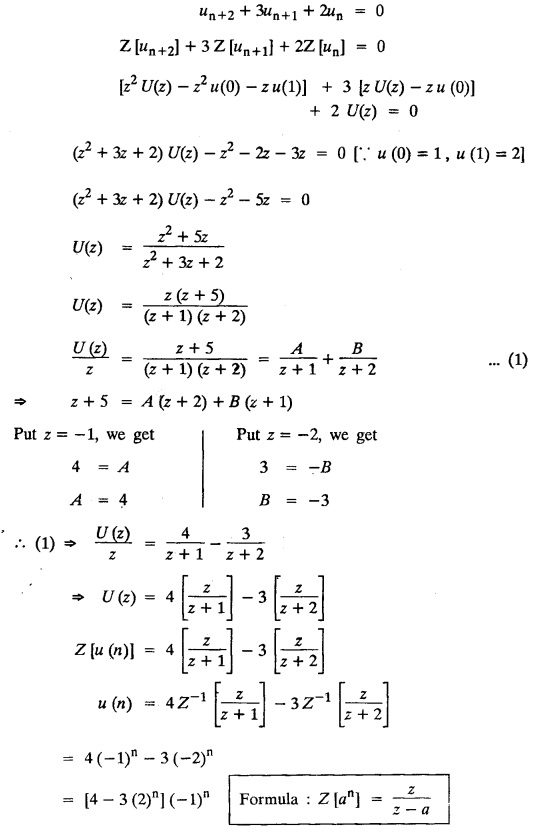

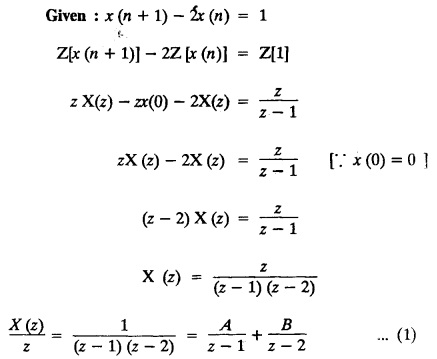

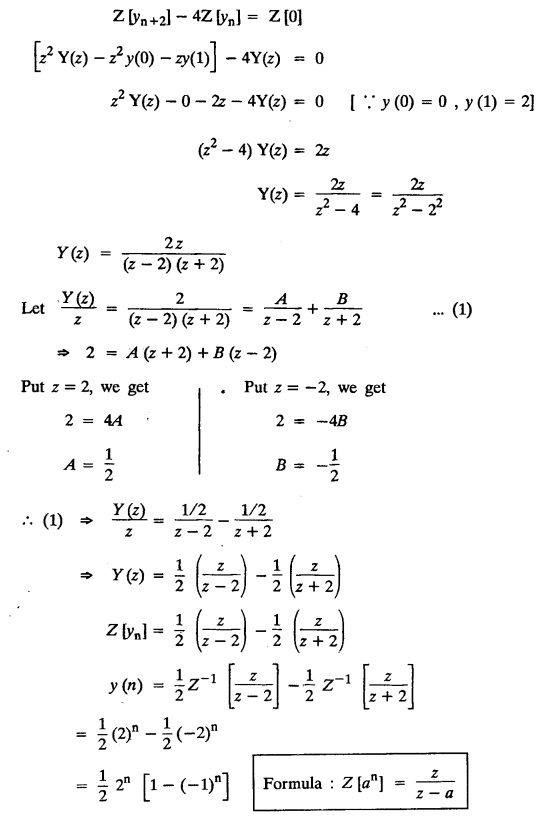

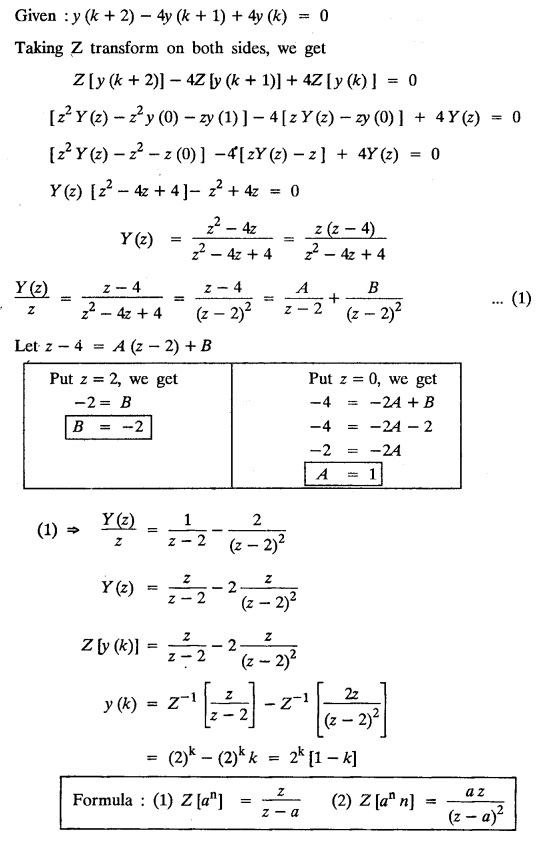

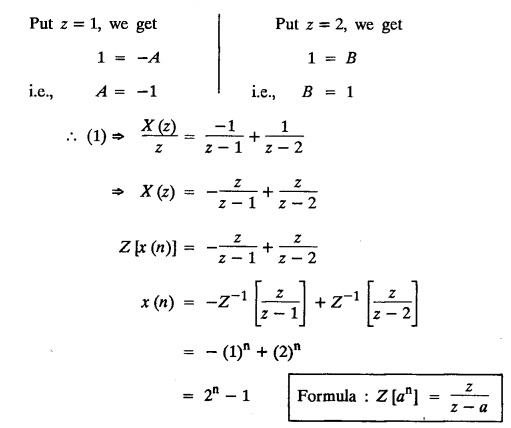

Solution of difference equations using Z-transform. We know that Laplace Transforms are very useful to solve linear differential equations The Z-transforms are useful to solve linear difference equations. Problems based on Solution of the difference equations using Z-transform Solve : 1. Solve yn+1 -2yn = 0 given y0 = 3 Solution: Given: yn+1 -2yn = 0 Taking Z-transform on both sides of the difference equation, we get 2. Using Z-transform, solve yn+2 − 4yn = 0, given that y0 = 0, y1 = 2. Solution: Given: yn+2 – 4yn = 0 3. Solve yn+2 - 4yn = 0 Solution: Given 4. Using Z-transform, solve un+2 + 3un+1 + 2un = 0 given u0 = 1, u1 = 2. Solution: Given: 5. Solve the difference equation y (n + 3) − 3y (n + 1) + 2y(n) = 0 given that y(0) 4, y(1) = 0 and y(2) = 8. Solution: 6. Solve Yn + 2 - 2 cos α Yn +1 + Yn = 0 given that y0 = 1, y1 = cos α. Solution: 7. Solve the difference equation y (k + 2) - 4y (k + 1) + 4y (k) = 0 where y(0) = 1, y (1) = 0. Solution : 8. Using Z-transform solve y (n) + 3y (n − 1) - 4y (n − 2) = 0, n ≥ 2 given that y(0) = 3 and y (1) = -2. Solution: Let 3z + 7 = A (z − 1) + B (z + 4) 9. Solve x (n + 1) − 2x (n) = 1, given x(0) = 0 Solution: Let 1 = A (z − 2) + B (z − 1) 10. Using Z-transform method solve yn+2 + Yn = 2 given that y0 = = y1 = 0. Solution: 11. Solve yn+2 + 6yn+1 + 9yn = 2n given y0 = y1 = 0 Solution: 12. Using the Z-transform, solve un+2 + 4un+1 + 3un = 2n with u0 = 0, u1 = 1 Solution: 13. Using Z-transform, solve un+2 − 5un+1 + 6un = 4n given that u0 = 0, u1 = 1. Solution: 14. yn + 2 + 4yn +1 + 3yn = 3n with y0 = 0, y1 = 1 Solution: 15. Solve yn+2 + Yn = n2n. Solution: equating z2 on both sides, we get 16. Using Z-transform, solve yn+2 + 4yn+1 − 5yn = 24n - 8 given that y0 = 3 and yı = -5. Solution: put z = -5, we get -375 + 25 + 95 + 39 = A (-6)3 -216 = -216 A A = 1 put z = 1, we get 3 + 1 - 19 + 39 = D(6) 24 = D(6) D = 4 equating z3 on both sides, we get 3 = A+ B 3 = 1 + B B = 2 put z = 0, we get 0 + 0 + 0 + 39 = -A + 5B - 5C + 5D 39 = −1 + 10 – 5C + 20 39 = 29 - 5C 5C = 29 - 39 5C = -10 C = -2 17. Solve y(n) − y(n − 1) = u(n) + u(n − 1) when u(n) = n, u(n−1) = n−1 Solution : 18. Find the response of the system : yn + 2 - 5yn+1 + 6yn = un, with y0 = 0, y1 = 1 and un = 1 for n = 0, 1, 2, by Z-transform method. Solution: Given: yn +2 - 5yn +1 + 6yn = un Taking Z-transform of both sides of the given equation we get 19. Solve the simultaneous difference equations xn+1 = 5xn+7, yn+1 = xn + 2yn given that x0 = 0, and y0 = 1. Solution: 20. Solve the system using Z-transform xn+1 = 7xn + 10yn yn+1 = xn + 4yn given that x0 = 3, y0 = 2. Solution: z = 2 is a simple pole z = 9 is a simple pole z = 2 is a simple pole z = 9 is a simple pole I. Find the Z-transform of the following sequences. 1. Find the inverse Z-transform of the following sequence by any method. Solve the following equations, using Z-transform. Miscellaneous Problems Find the bilateral Z - transform of the following : 1. Find Solution: 2. Find Z{f(n)} if_ Solution : 3. Find Z [f(n)] if f(n) = Solution : 4. Find the Z-transform of Solution : 5. Find the Z-transform of the sequence x(n) = {1, 2, 3, 4, 0, 6, 7} Solution : As x (n) has values from n = 0 to n = 6 X (z) has finite values except at z = 0. At z = 0, X (z) is infinite. Hence, X (z) is convergent for all values of z, except z = 0 ⸫ The region of convergence (ROC) is the entire z plane except z = 0. 6. Find Z [et sin 2 t] Sol. 7. If Solution : By initial value theoremEXERCISE - 5.1

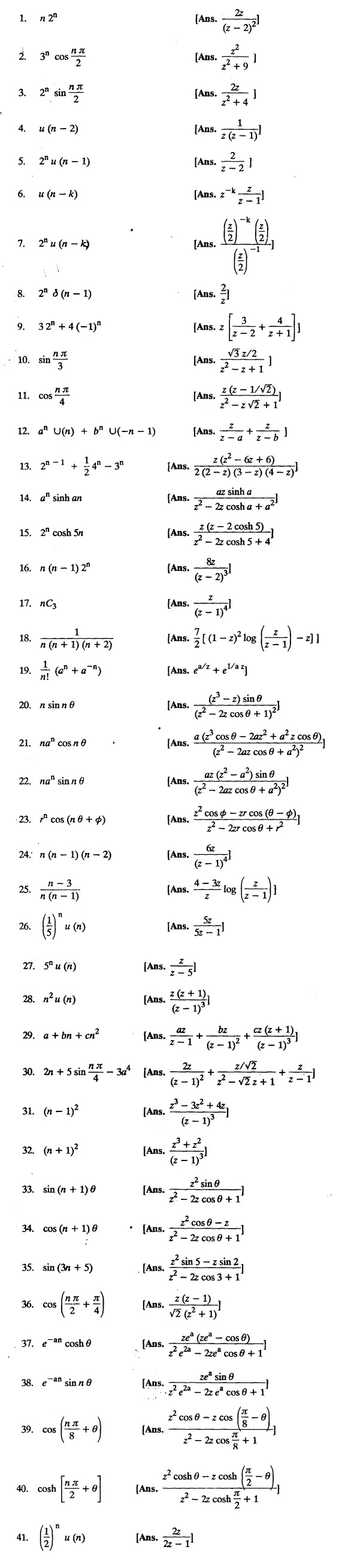

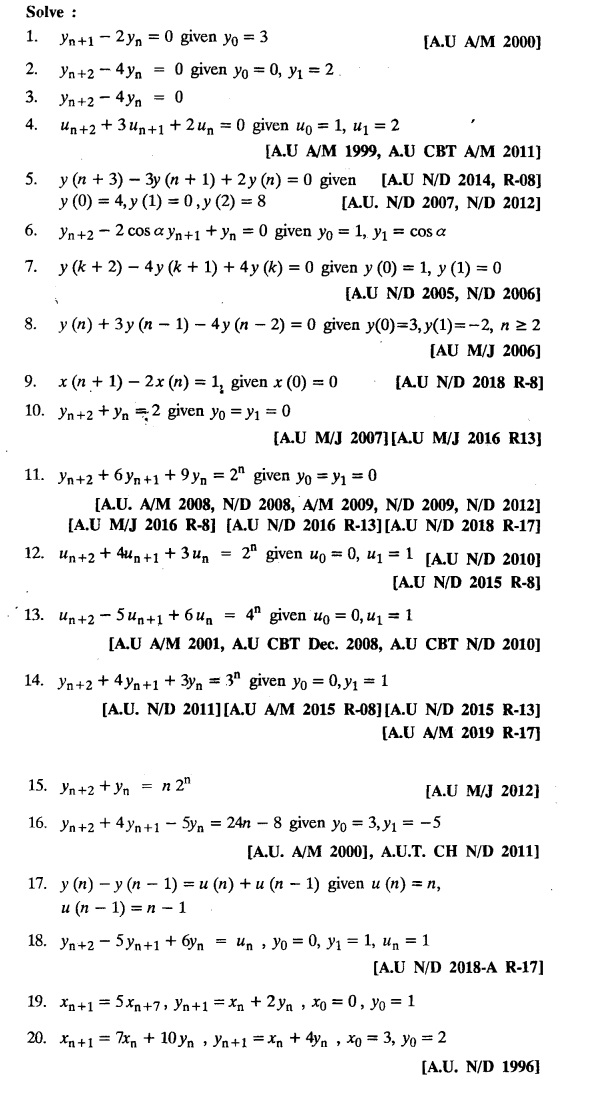

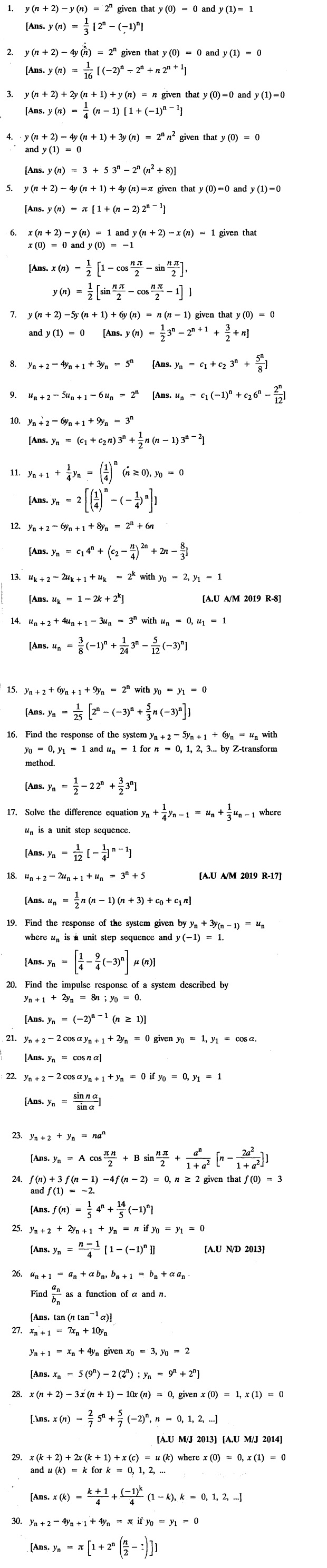

EXERCISE - 5.2

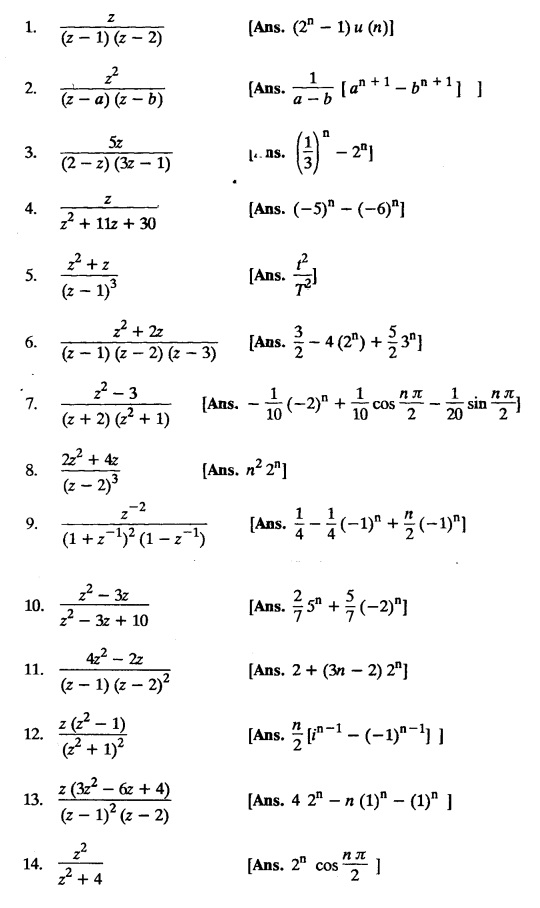

EXERCISE - 5.3
then find ƒ (0), using initial value theorem.
