During metal cutting, the chips are produced due to the plastic deformation of the metal along the shear plane.

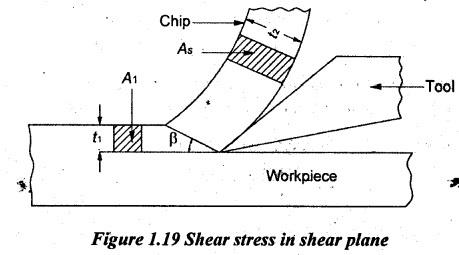

SHEAR STRESS IN SHEAR PLANE

During metal cutting, the chips are produced due to the plastic deformation of the metal along the shear plane.


Let,

A1 = Area of the chip before removal

As = Area of the shear plane

τ = Shear stress in the shear plane
