• A hydraulic pump is a device which converts mechanical energy into hydraulic energy.

• Pump classification:

1. Non positive displacement (hydro-dynamic) pumps, and

(a) Centrifugal pumps, (b) Axial flow pumps, and (c) Mixed flow pumps.

2. Positive-displacement (hydro-static) pumps, and

(i) Rotary pumps

(a) Gear pumps, (b) Vane pumps, and (c) Screw pumps.

(ii) Reciprocating pumps

(a) In-line axial piston pump,

(b) Bent axis axial piston pump, and

(c) Radial piston pump.

• The non-positive displacement (i.e., centrifugal) pumps are used only for transporting fluid from one location to another location. They are not preferred in the fluid power industries because these pumps cannot withstand high pressures.

• The positive displacement pumps discharge fixed quantity of fluid into the hydraulic system per revolution of pump shaft rotation. These pumps are widely used in all fluid power applications.

• The construction and operation of different types of pumps such as external gear pump, internal gear pump, lobe pump, gerotor pump, screw pump, unbalanced and balanced vane pumps, and axial and radial piston pumps have been discussed in this chapter.

• Formulae Summary :

1. Theoretical discharge : QT (m3/min) = VD (m3/rev) × N (rpm)

2. Volumetric efficiency:

3. Gear pump volumetric displacement:

4. Vane pump volumetric displacement:

5. Piston pump volumetric displacement: VD = Y A D tan θ

6. Piston pump theoretical flow rate: QT = Y A D tan θ

7. Radial piston pump theoretical flow rate: QT =  0.5 е Y лd2 N

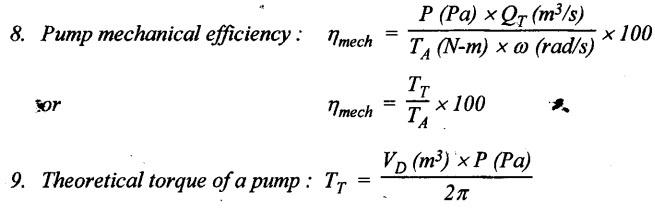

10. Pump overall efficiency:

• At the end of the chapter, various pump characteristics and about selection of pumps are presented.

KEY TERMS ONE SHOULD REMEMBER

Pump

Positive displacement pumps

Hydrostatic displacement

pumps

Fixed displacement pumps

Variable displacement pumps

Non-positive displacement

pumps

Hydrodynamic displacement pumps

Gear pumps

External gear pumps

Internal gear pumps

Lobe pumps

Gerotor pumps

Vane pumps

Unbalanced vane pumps

Balanced vane pumps

Piston pumps

Axial piston pumps

Bent axis type

Swash plate type

Radial piston pumps

Volumetric displacement

Theoretical flow rate

Volumetric efficiency

Mechanical efficiency

Overall efficiency

Brake power

Hydraulic power

Pump characteristics

 Characteristics curves

Pump performance

Pump noise

Slip

Cavitation

Pump ripple

Pump selection

Screw pumps
