According to this theory, the relation between rake angle (α), shear angle (β) and friction angle (γ) is given by

MODIFIED MERCHANT THEORY

According to this theory, the relation between rake angle (α), shear angle (β) and friction angle (γ) is given by


The following conclusions are made by Merchant

1. Shear will take place in the direction in which the energy required for shearing is minimum.

2. Shear stress is maximum at the shear plane and it remains constant.

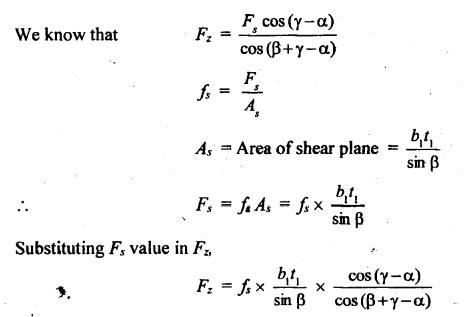

Since, the Merchant's model is based on the minimized rate of energy consumption which is equal to Fz × r. For optimum value of β,

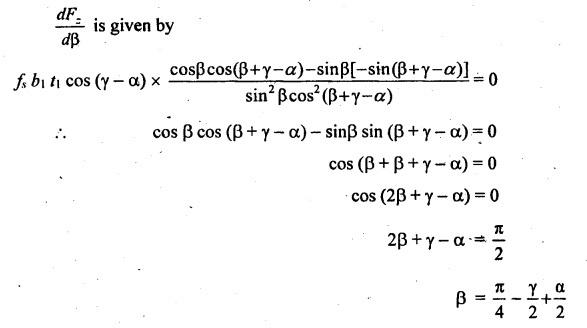

Differentiating the above equation Fz with respect to β and equating it to zero.
