Hydraulics and Pneumatics: Unit V: Trouble Shooting and Applications
Failure and troubleshooting of pneumatic system
Trouble Shooting and Applications - Hydraulics and Pneumatics

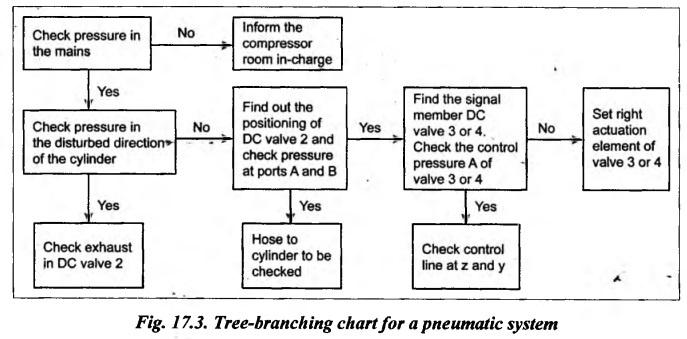

Similar to hydraulic systems, a tree branching chart shown in Fig.17.3 can be used to find the faults in pneumatic systems.

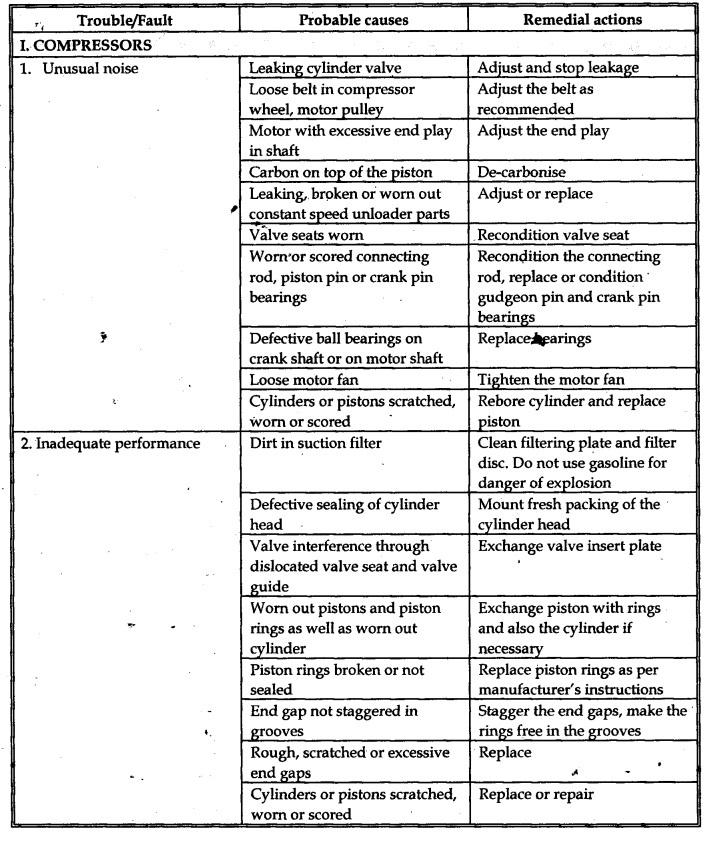

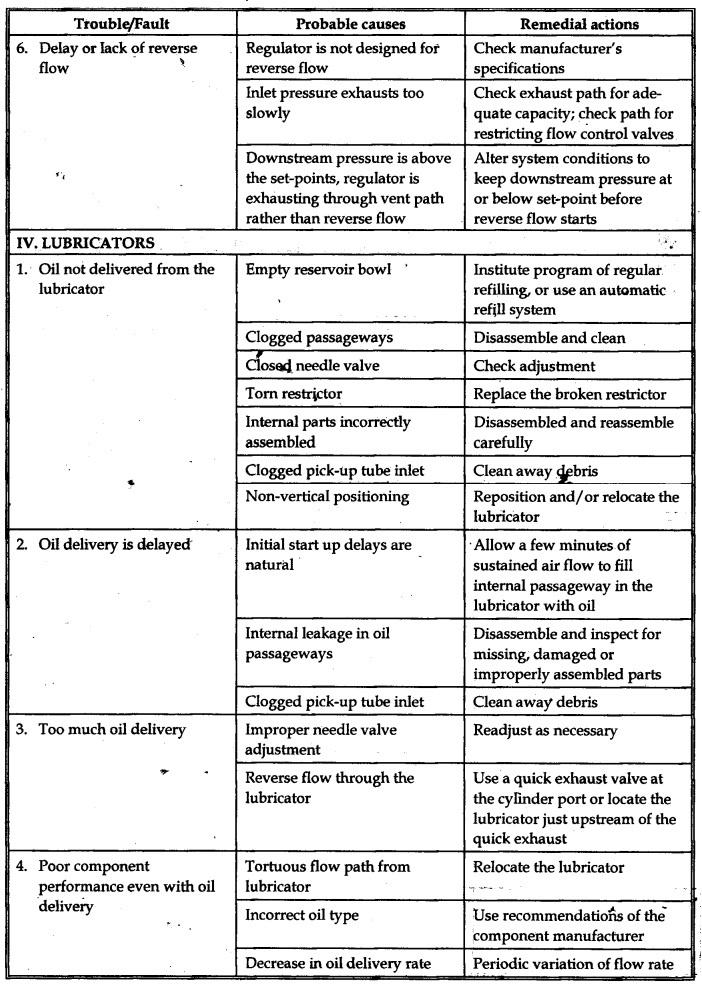

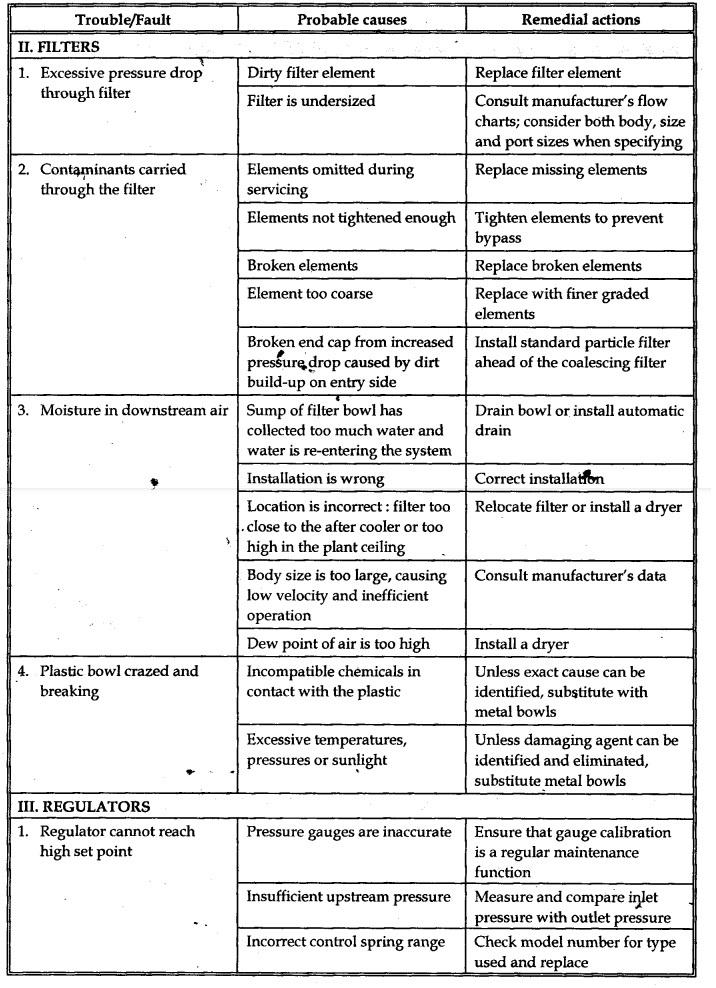

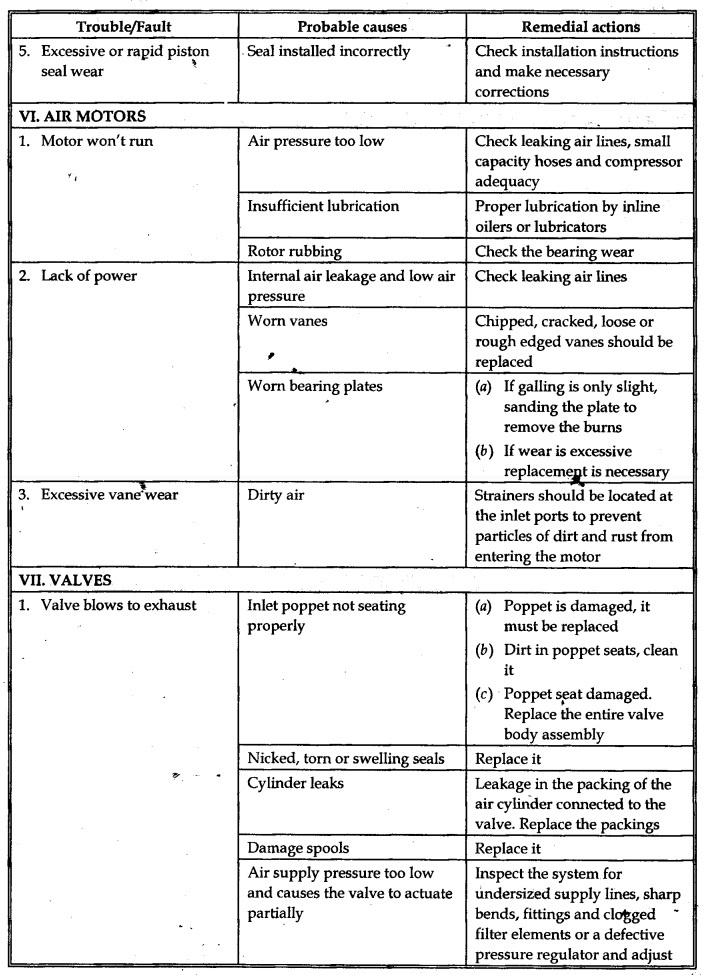

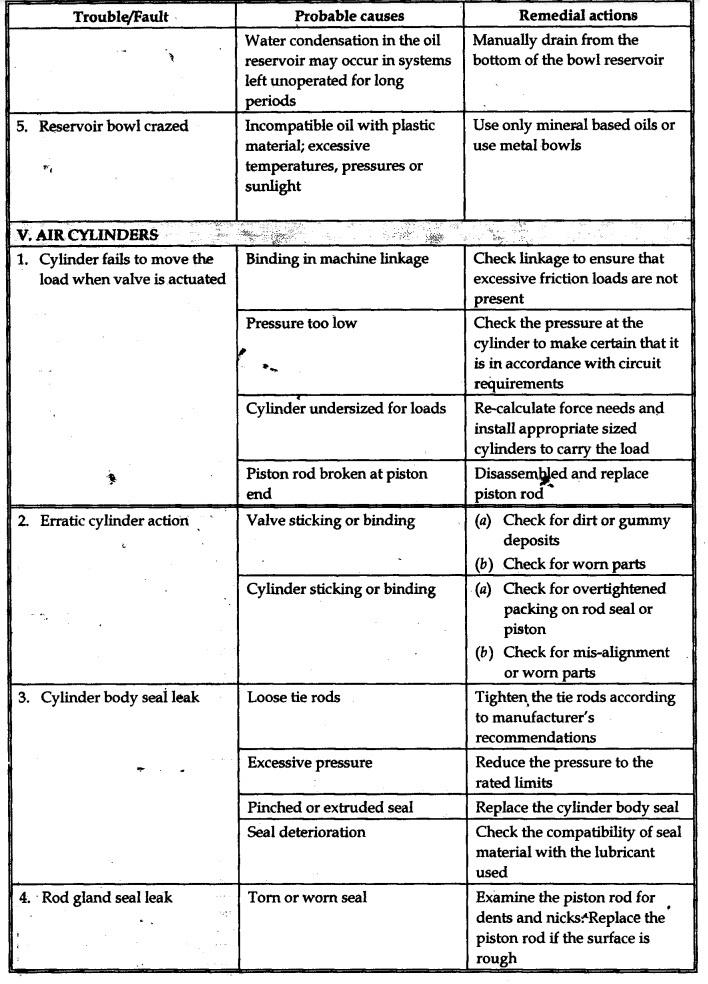

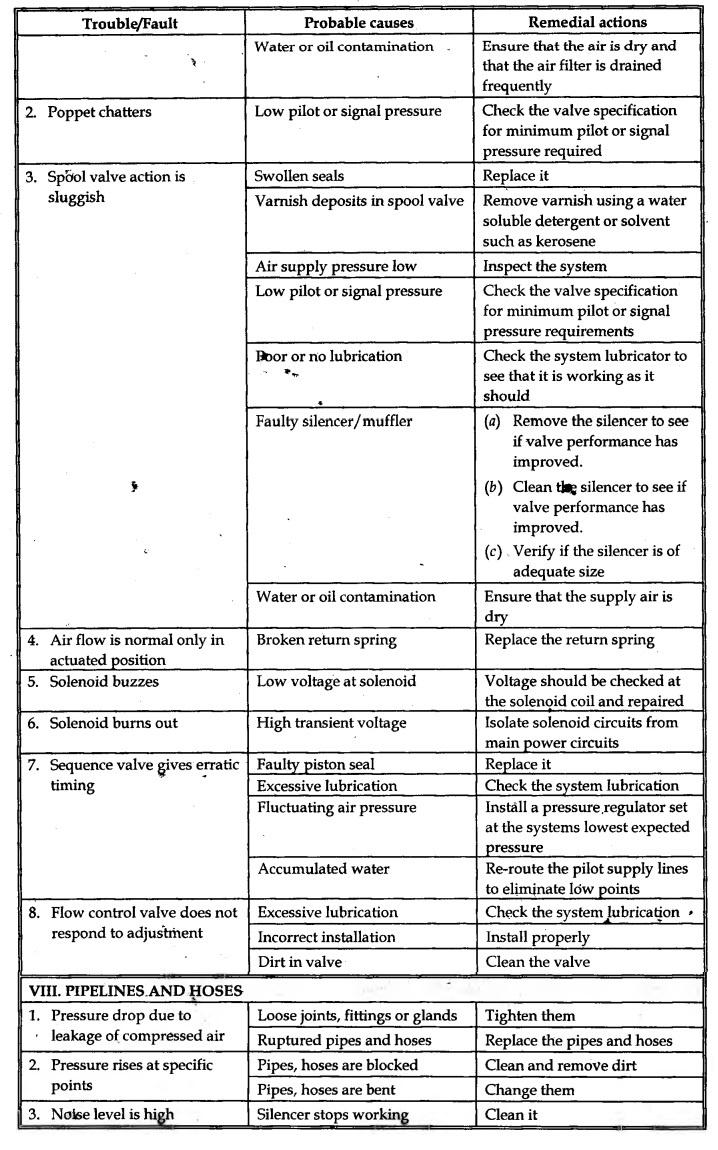

FAILURE AND TROUBLESHOOTING OF PNEUMATIC SYSTEM Similar to hydraulic systems, a tree branching chart shown in Fig.17.3 can be used to find the faults in pneumatic systems. Table 17.5 presents the various faults, their symptoms, probable causes, and also the remedial actions that can be taken to prevent them in pneumatic systems. Table 17.5. Various faults, possible causes, and remedies of a pneumatic system and its components1. Fault Finding using Troubleshooting Charts
2. Fault Diagnosis of Pneumatic System
